DCC02 – Diver Control Container

Seascape Subsea Technology has developed a diver control container commissioned by Bodac BV. In order to guarantee that their specialised services are of the highest level, Bodac has invested in a new IMCA compliant and Lloyds witnessed diving system. This system, has been designed specifically for UXO Clearance. This means that Bodac can autonomously carry out specialised services concerning UXO Clearance in Germany.

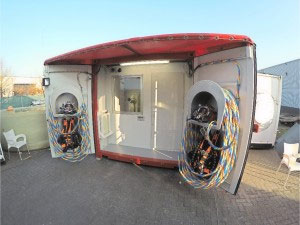

The DCC is a complete 2 diver air/Nitrox diving control container for diving up the 50 m water depth, it is IMCA compliant and Lloyds witnessed. The container is divided in 3 compartments. The control compartment is fully isolated. The front compartment has the main entrance door to the middle compartment, the control room. The front compartment also contains the umbilical brackets with umbilical’s, Bailout sets and a helmet cabinet including Kirby Morgan SL27 helmets.

Description

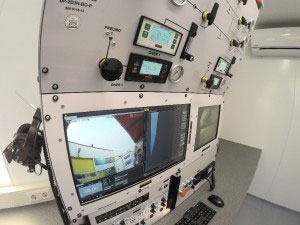

The middle compartment contains the main diver control console. The diver console has a diver gas panel, a 2 diver communication unit with video & light control and recording, a 15” and a 21,5” monitor and a marine VHF. The system is connected with a PC with video software. Also inside this compartment you will find an air-conditioning unit, smoke detection system, cabinet with complete MAD-B-DMAC15 set, heater, a sitting bench which also contains 2 emergency breathing apparatus and a fire extinguisher.

The third compartment which is accessible from the backside of the container, is the engine/storage room. This compartment contains a high pressure compressor, 4x 140 litre/300 Bar bottles, heater, workbench, fan, High pressure switch panel and a fire extinguisher.

Features

Air conditioner
HP compressor
IMCA compliant & Lloyds witnessed
PC computer built in
External CCTV system
Digital diver depth monitoring and logging
Digital gas analyzers monitoring and logging

Specifications

Container	Standard Double door 20 ft. container, IMCA compliant and Lloyds witnessed.
Power supply	400 Vac 50 Hz 16A, 10 kW (3 Phase) optional with N for extra 230 Vac.
Internal power	230 Vac 50 Hz, and 400 Vac 1 kW (available for extra equipment). UPS 2 kW
HP air supply	300 bar@ 250 l/min, auto switch off/on, 400Vac, 50Hz.
HP buffer	4x 300 bar, 140 litre cylinders.
Heating	2x 1 kW
Climate control	– Airco: Cooling capacity 5.0 kW, Heating capacity 5.8 kW
Communications	2 diver comms. with integrated video & Led light control with 2 channel DVR and 19” PC
Ext. comms	1x Marine VHF.
Umbilicals	2x 125 m, 1×127 m Diver umbilical complete with cameras, light and comms
