Description

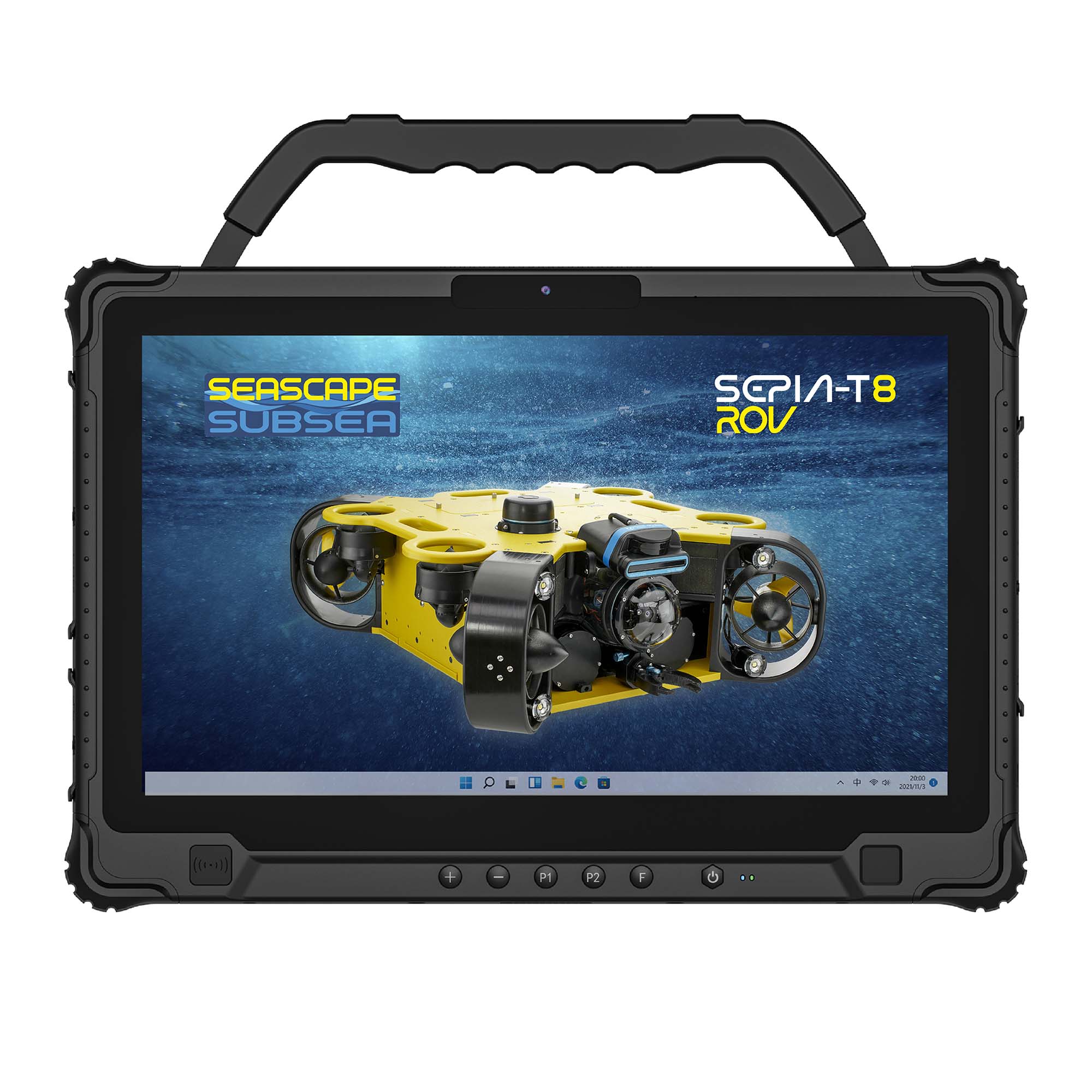

14” Rugged ROV Tablet for controlling and monitoring ROV operations with the COCKPIT Application.
The RGT14-I5 ROV TABLET is a rugged tablet for operating and monitoring the SEPIA-T8 or BlueROV2.

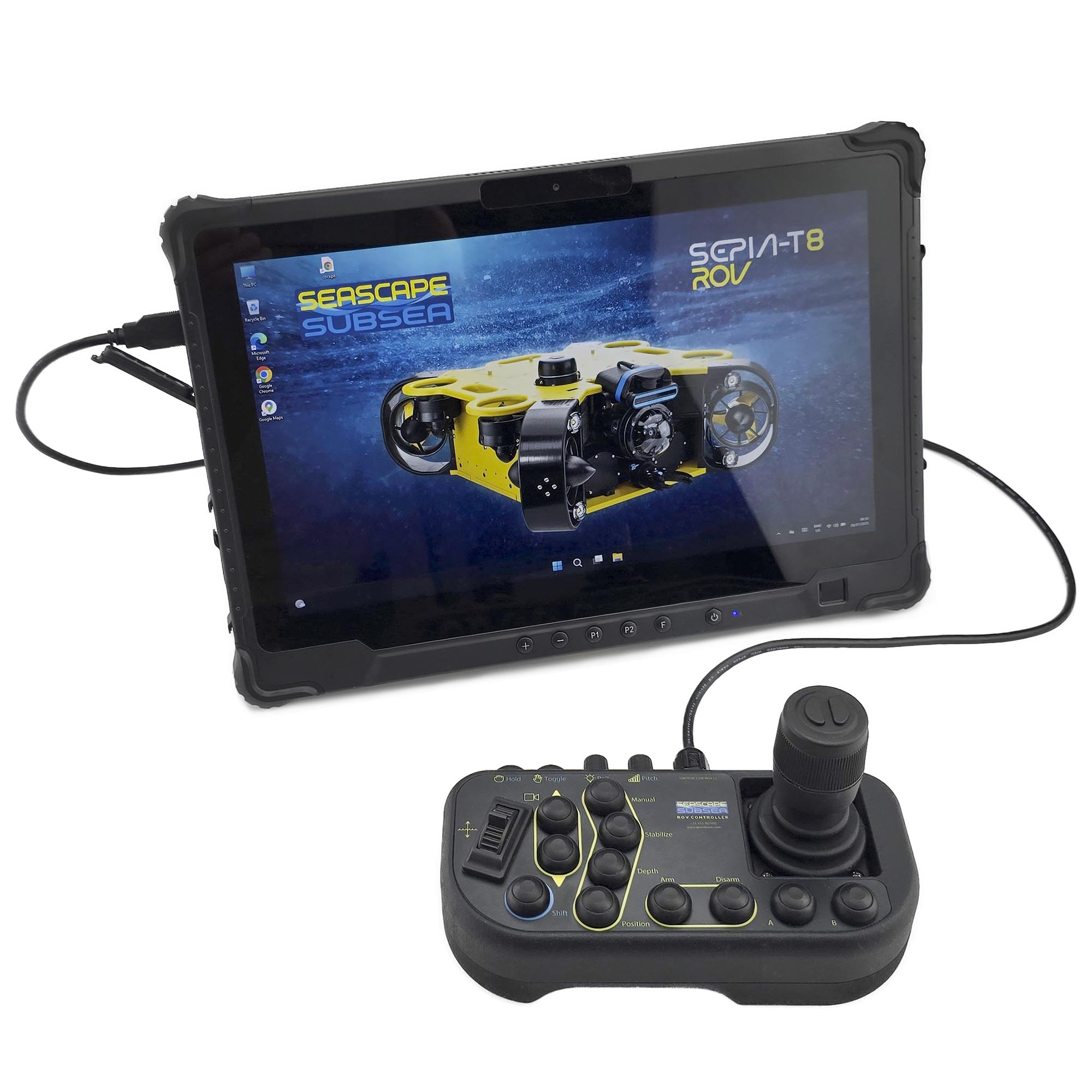

Designed for field use, it integrates a high-performance tablet, a sunlight-readable 14-inch touchscreen monitor, and an intuitive COCKPIT application. The tablet can be used with SEASCAPE’s waterproof ROV Handcontroller and provides seamless ROV control via a Fathom-X tether interface for uninterrupted operations.
The ROV TABLET is configured with COCKPIT, a ROV mission control app.
COCKPIT offers a highly customisable interface through its innovative widget system, enabling you to tailor the layout to your precise requirements.
In addition, Cockpit enables direct video recording on the onboard computer, including the ability to capture telemetry as subtitle files. This functionality is available with both Full HD and 4K videos.
Included Contents
1 x 14” Rugged ROV Tablet
1 x Charger
Specifications
| CPU | Intel® Core™ i5-1235U/i7-1255U |
| OS | Windows 11/10 |
| Communication | WiFi 6, 802.11 / BT5.1| Transmission distance: 10m | OPTIONAL: 4G/5G |
| LCD | 14 inch LCD 16:9, 1920×1080, 1000 nits |
| Touch Panel | 10 point G+G capacitive touch screen | Scratch-resistant| Supports glove touch |
| Camera | Front 5.0MP (USB) / Rear 8.0MP (USB) |
| Power | AC100V ~ 240V, Output DC 19V/3.78A 71.82W(EU Standard) |
| Battery (Buitlt-in) | 11.1V/1300mAh |
| Endurance | 1.5hrs (Default 50% volume, 200 lumens brightness, playing 1080P HD video) |
| Battery（Hot-swappable） | 11.55V/4850mAh | Li_polyment, removeable battery |
| Endurance | 8hrs (Playing 1080P HD video, Conditions: System in balance mode, 320 lumens, 70 dB at 10cm.) |
| Operate Temperature | -20 °C ~ 60 °C |
| Rugged Feature | IP65 certified, MIL-STD-810H certified |
| Drop Height | 1.22m |
| Dimensions ( LxWxH ) | 366.2 x 246.9 x 24.8 mm |
| Weight | 2.3 kg |
