Description

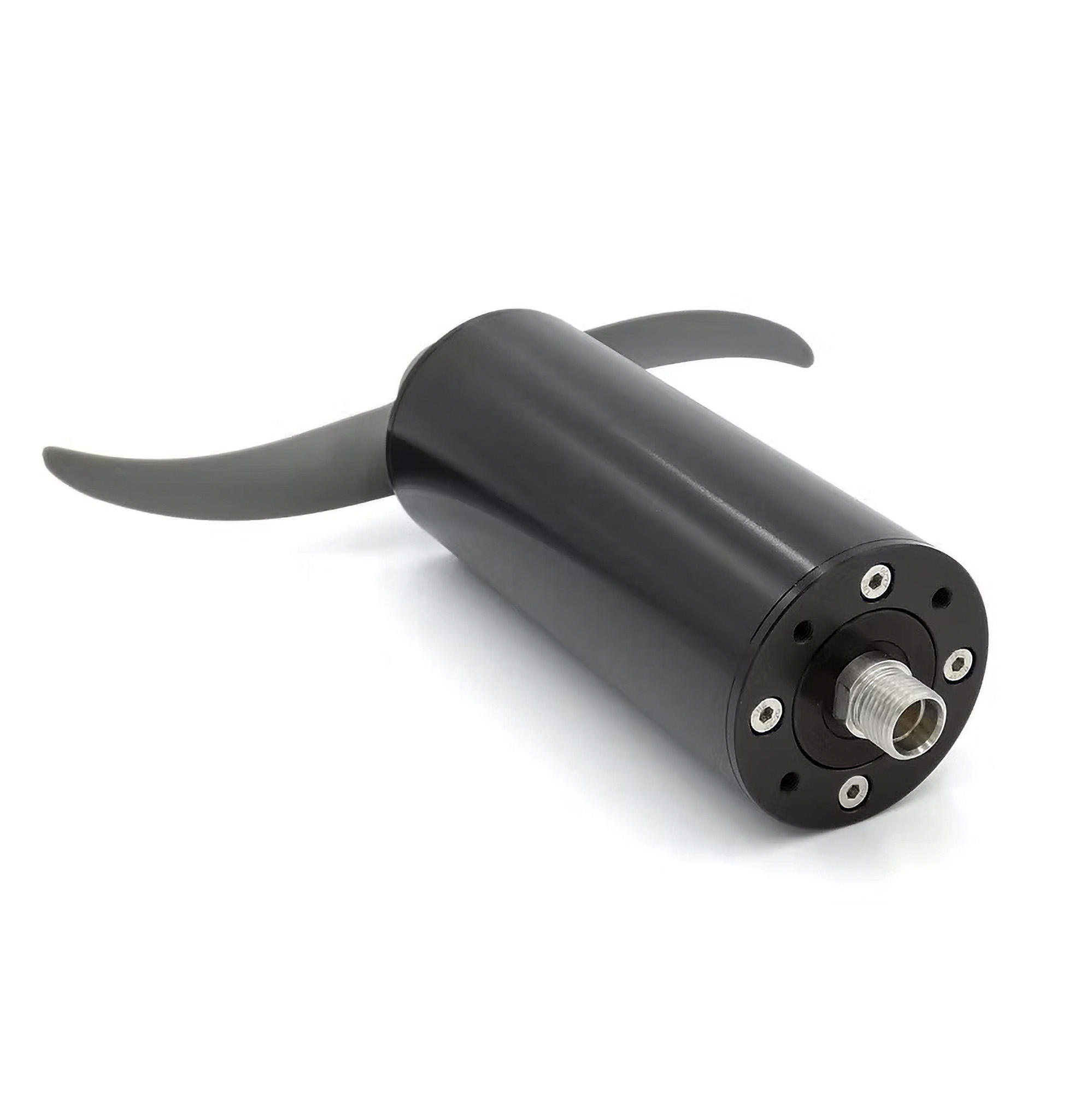

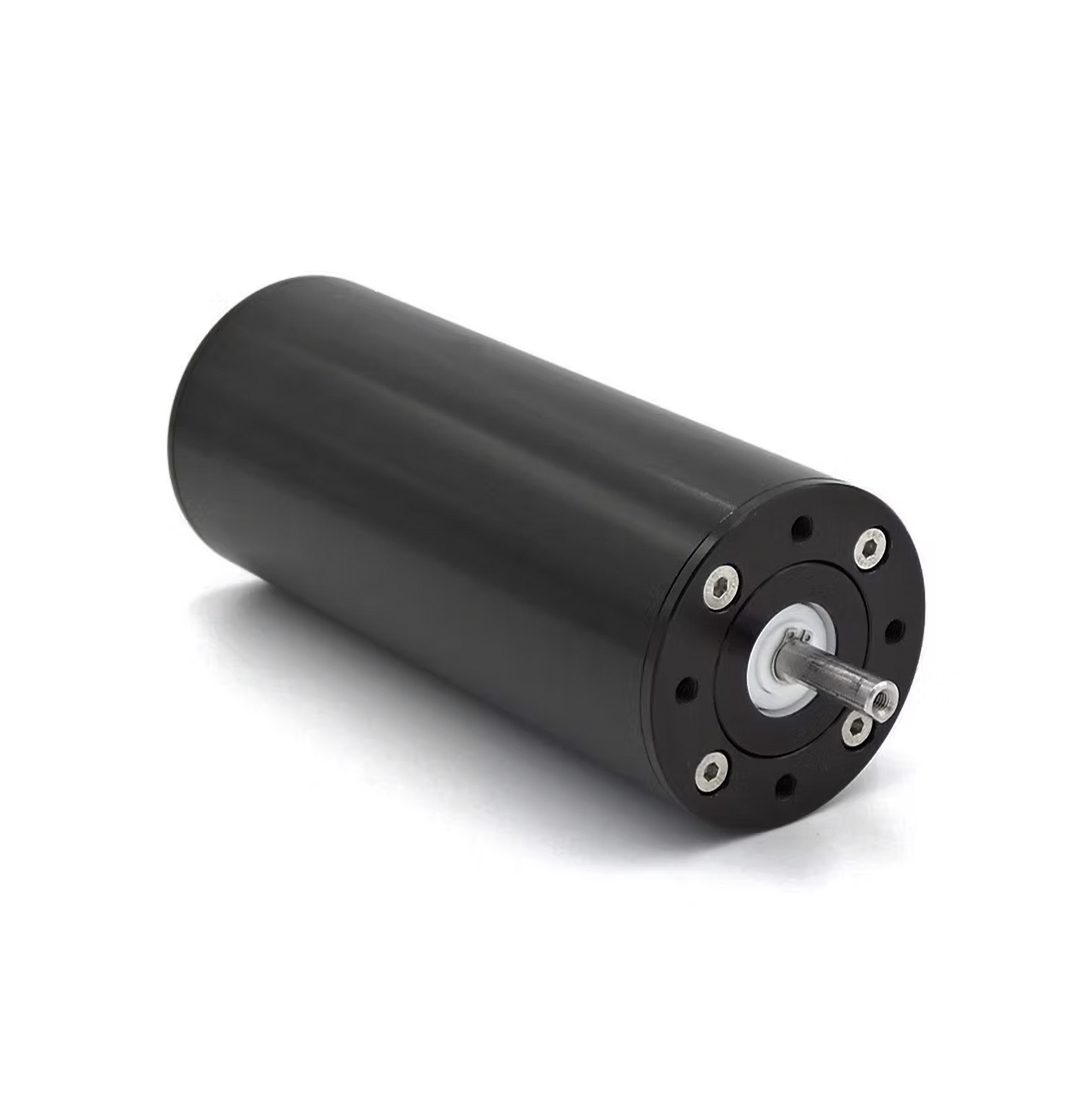

The MTR-2000 underwater motor combines high efficiency and reliability in a compact package, making it perfect for small USVs, AUVs, and a wide variety of motorized subsea applications.
The MTR-2000 is designed to produce high torque at low RPM. When used as a thruster motor, it can spin a relatively large-diameter propeller without a gearbox. In USV and AUV applications, this translates to a much lower power draw than that of a traditional shrouded ROV thruster.
As a subsea motor, the MTR-2000’s low speed, high torque, and flexible mounting options make it suitable for applications such as manipulators, drills, wheels, and brushes.
Unlike many other small underwater motors that utilize rubber shaft seals, the MTR-2000 features a magnetic shaft coupling. A ring of magnets mounted to the motor transmits torque to a matching ring of magnets mounted to the shaft. The two sets of magnets are separated by a solid barrier, eliminating potential leakage and the drag inherent in traditional shaft seals.
Shaft loads are supported by dual corrosion-free ceramic ball bearings, producing drastically lower drag and wear than plastic bearings.
The MTR-2000 is rated to 300 meters depth. Its housing is constructed of hard-anodized aluminum components sealed with redundant O-rings. The MTR-2000 can be mounted using the threaded holes on either end of the motor or by clamping to the outer diameter.
Included Contents
1x MTR-2000 underwater motor
