Description

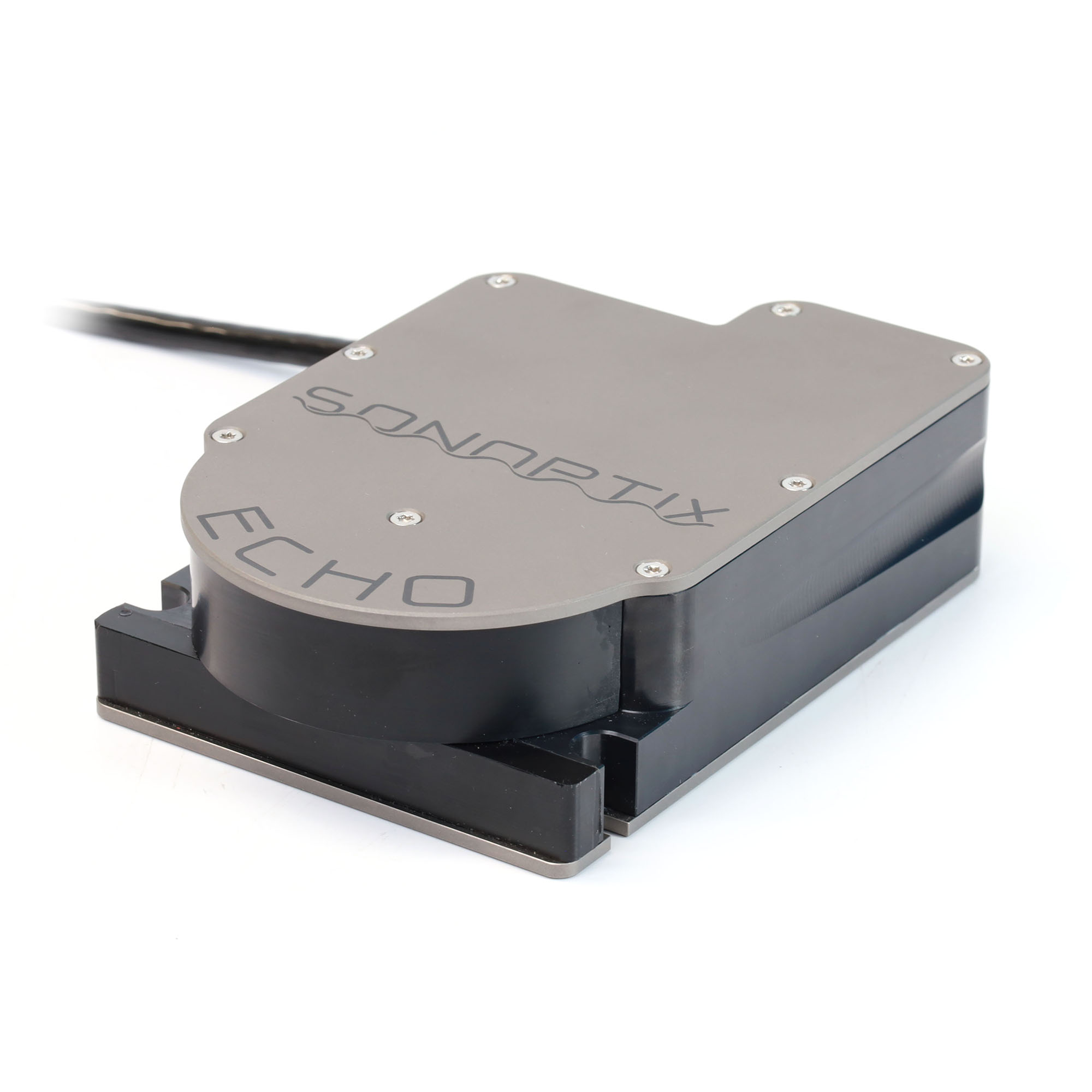

The Sonoptix ECHO is a high-performance multibeam imaging sonar at a game-changing price point. Its dual frequency capability provides fine resolution at short ranges and imaging at long ranges up to 200 meters. An intuitive, cross-platform user interface and pre-installed penetrator and connectors make it easy to get started.
Requires an Ethernet Switch for use on the BlueROV2.Multibeam imaging sonars, sometimes referred to as a forward-looking sonars, are a tool for navigation, inspection, and object detection. They provide unparalleled situational awareness in poor visibility conditions so you can navigate with easy, detect lost objects, and inspect underwater infrastructure. They’re one of the most common ROV accessories.

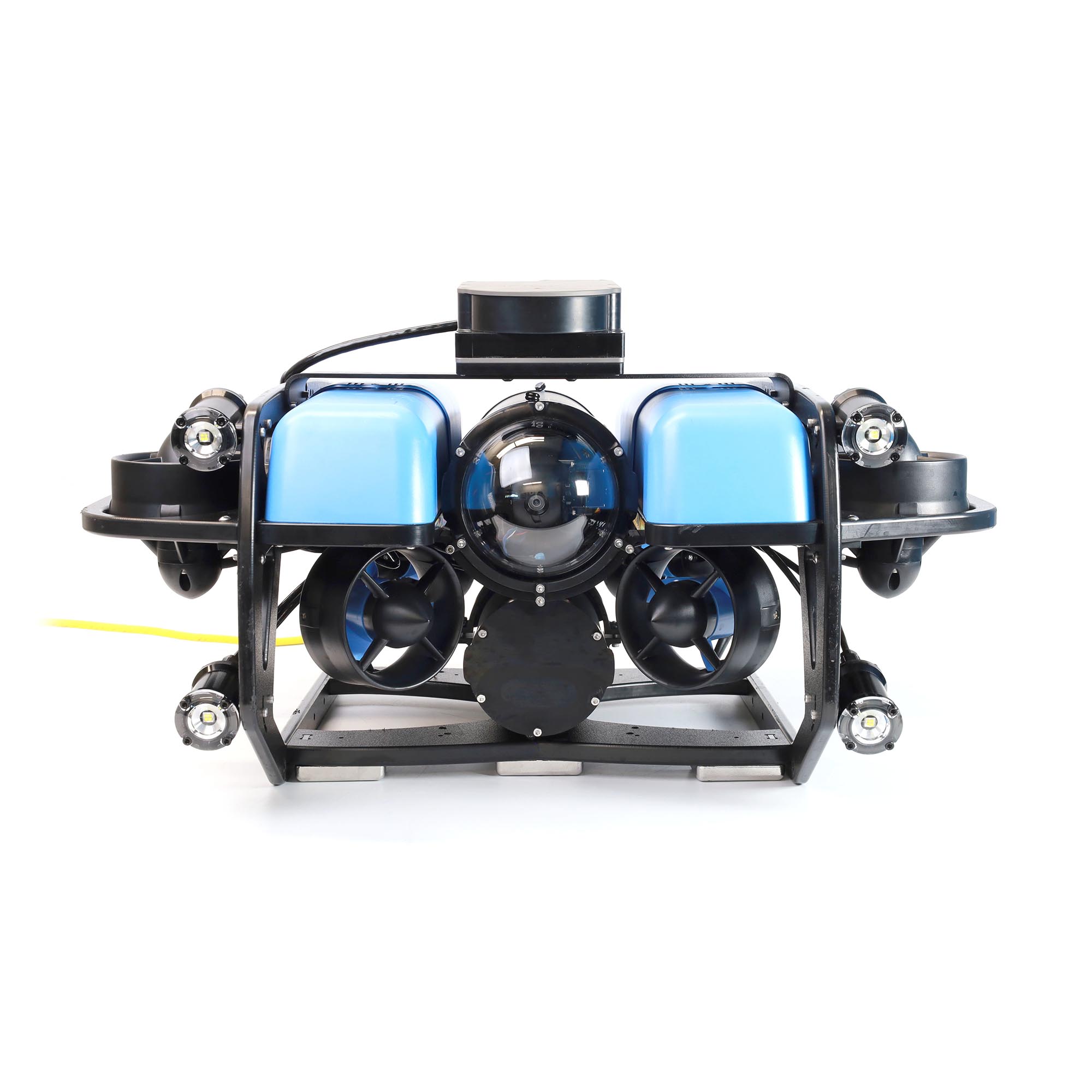

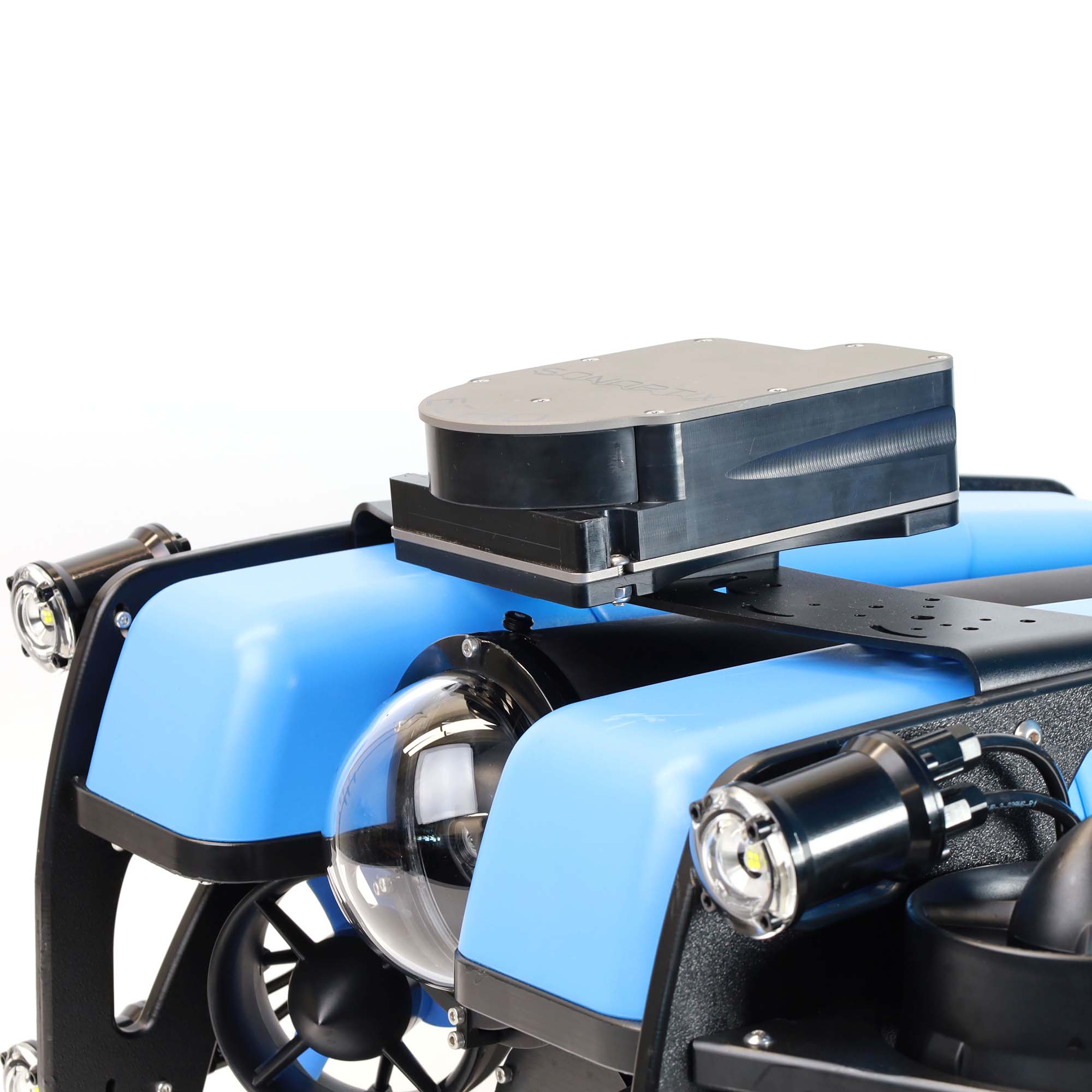

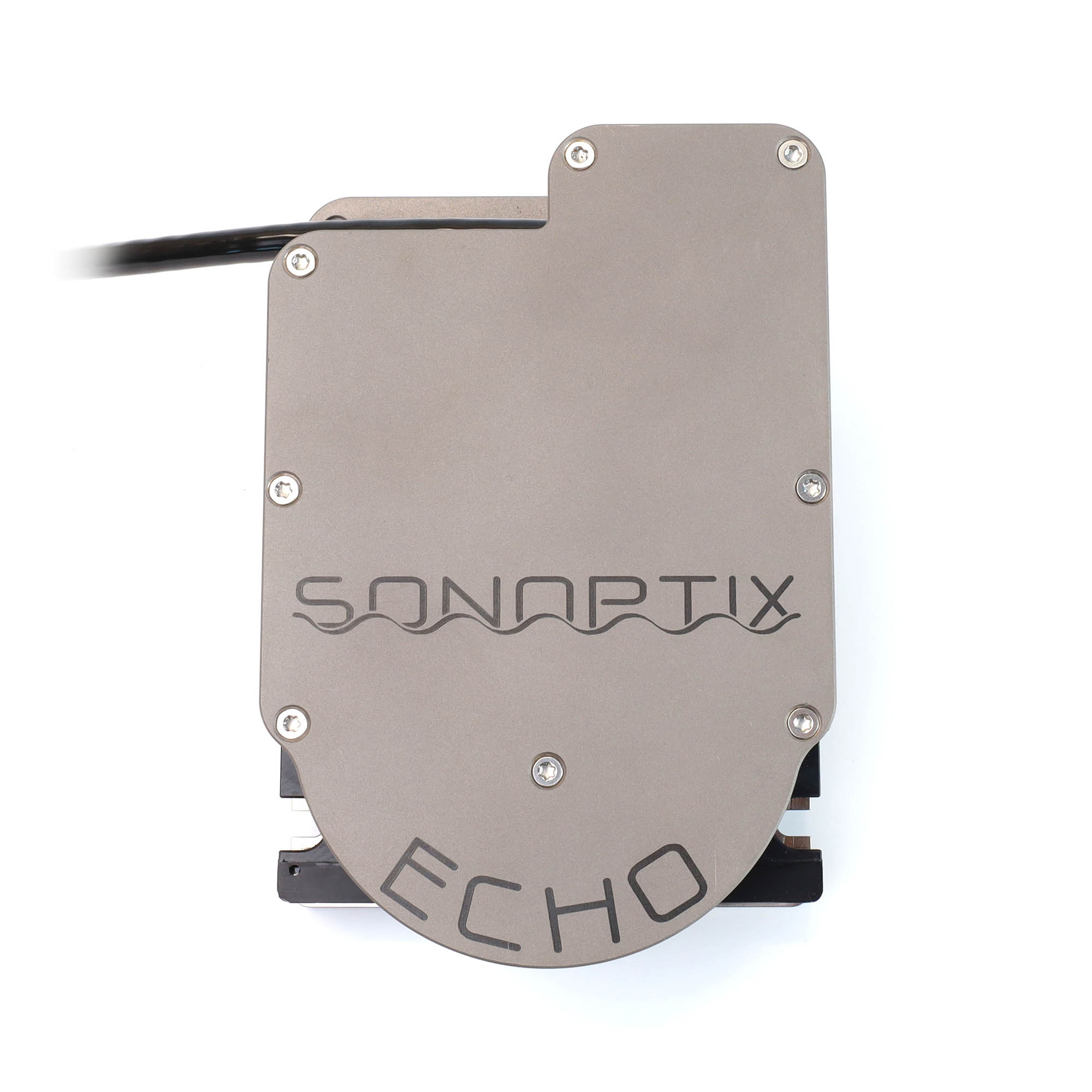

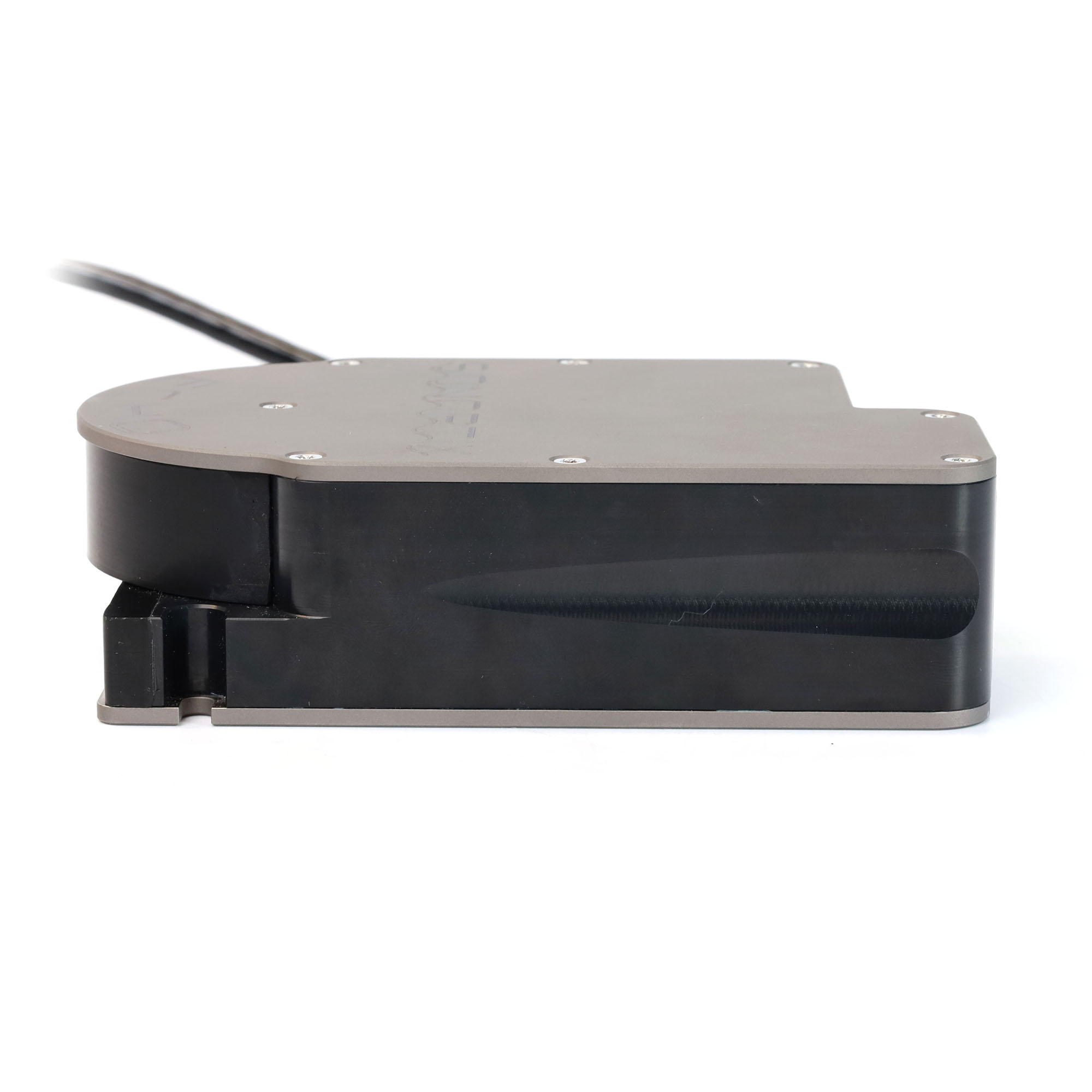

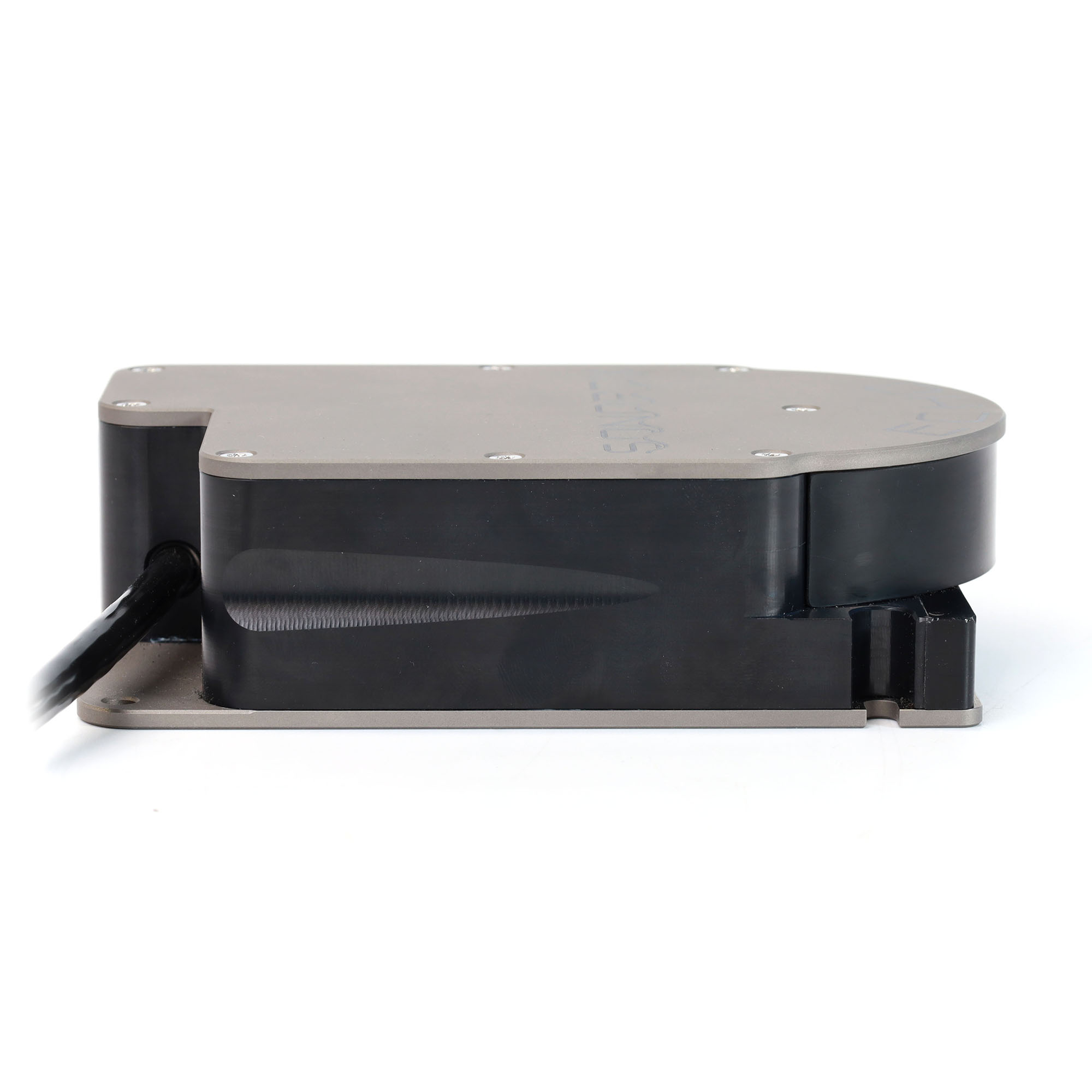

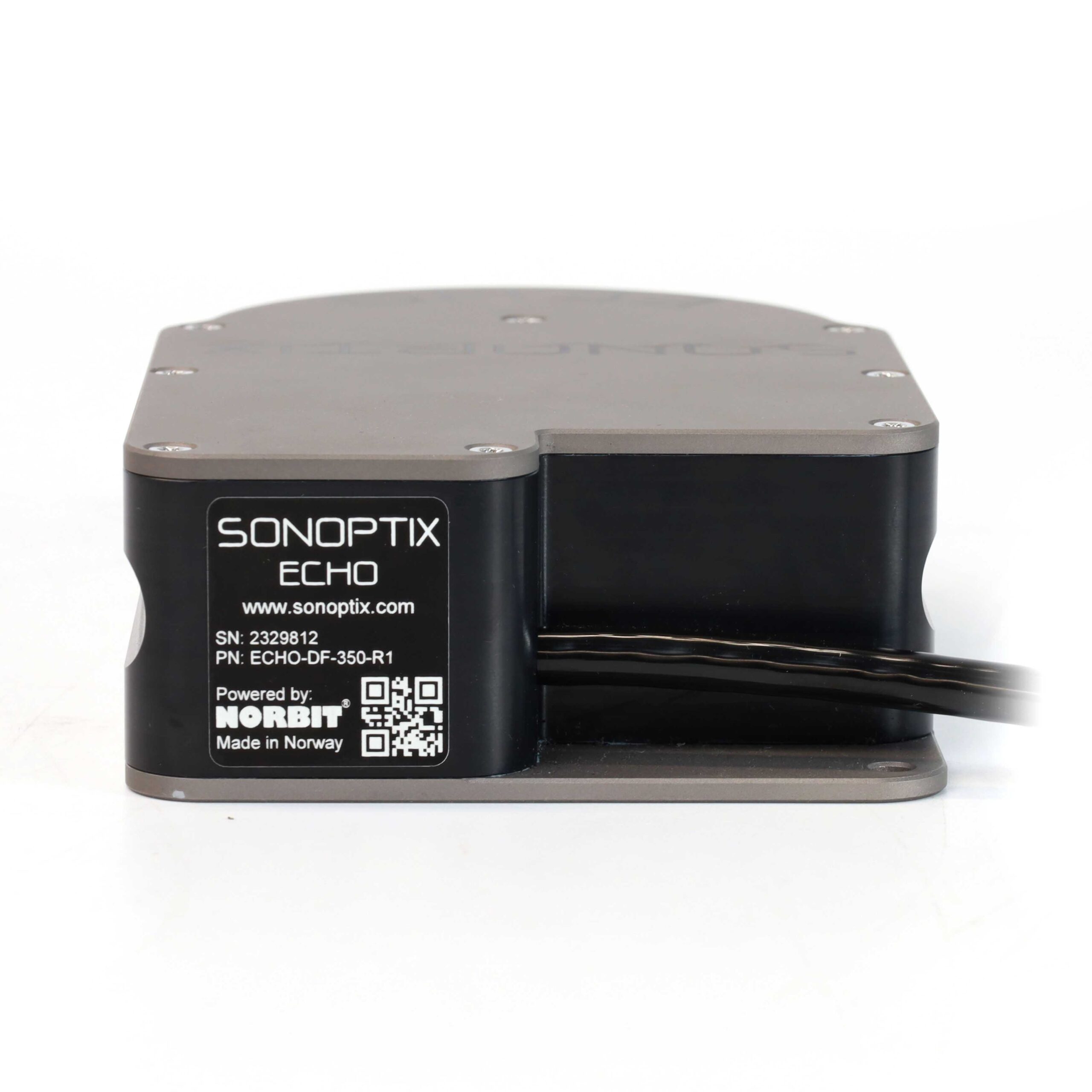

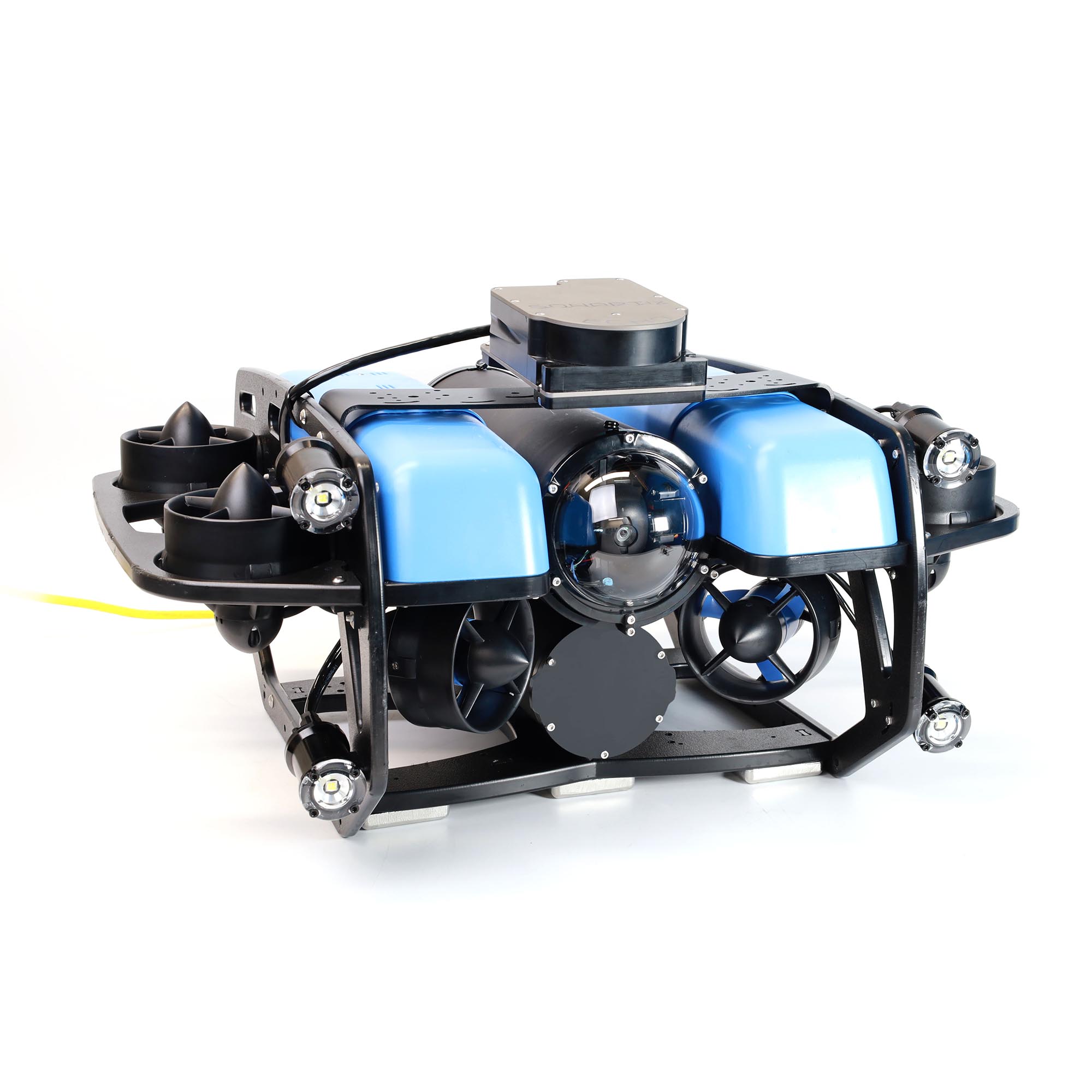

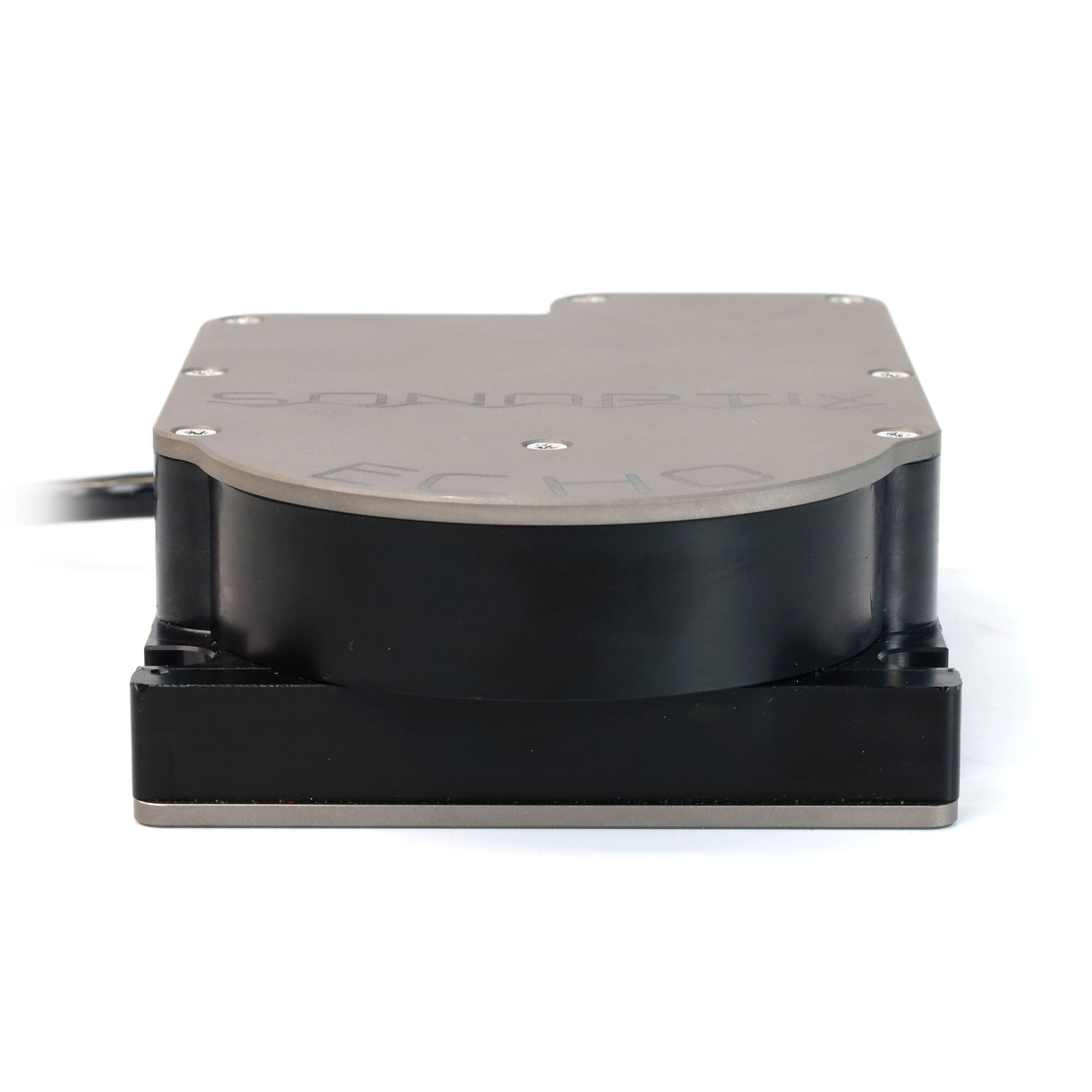

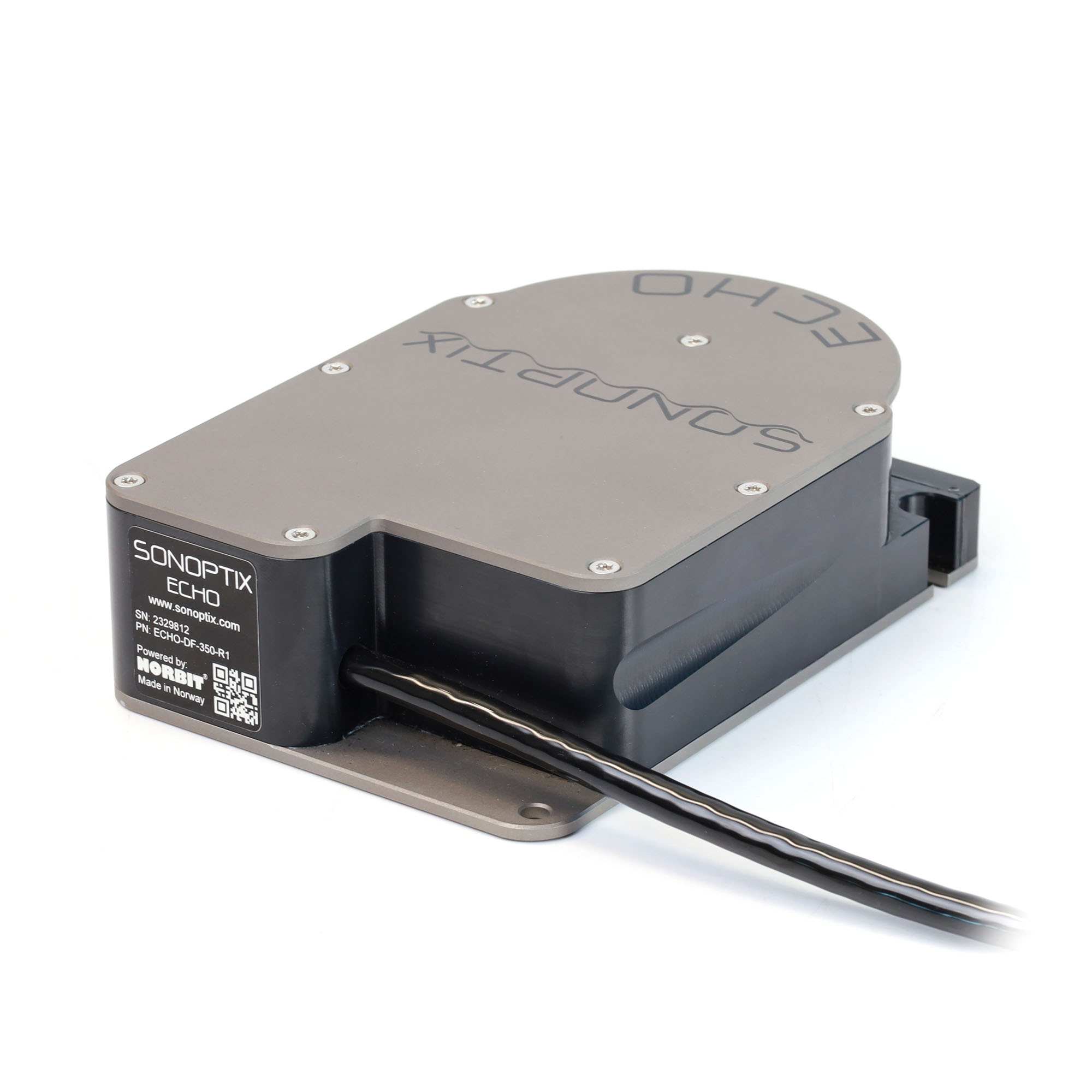

The ECHO is a compact, rugged unit built from titanium and plastic with a 350 meter depth rating. The available mounting bracket and BlueROV2 Roof Rack holds it at a 5 degree angle to provide an optimal view both forward and of the seafloor.
It operates on 9-28V and consumes up to 25W of power when running. It communicates over an Ethernet interface and requires a Ethernet Switch when used on the BlueROV2.
Included Contents

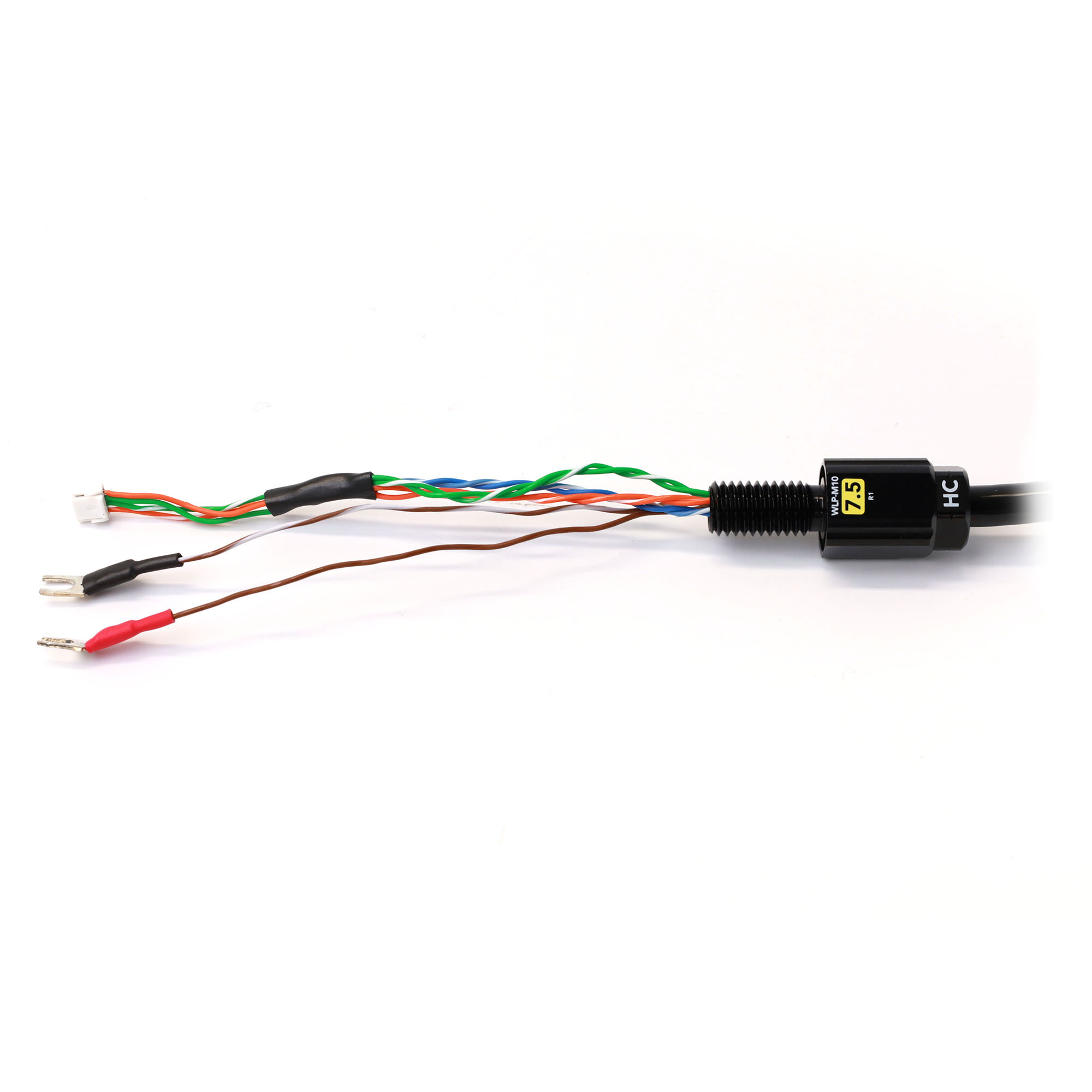

1 x Sonoptix Echo Multibeam Imaging Sonar with pre-installed WetLink Penetrator, JST GH connector, and spade connectors
1 x Sonoptix Echo 5 Degree Mounting Bracket (BR-101847)
1 x RJ45 to JST GH adapter
1 x 4-pin JST GH to 4-pin JST GH adapter PCB (BR-100509)
1 x 150 mm JST GH to JST GH twisted pair cable (BR-100557)
1 x M10 bulkhead nut (BR-100338)
1 x M10 bulkhead O-ring
5 x M4x12 button head cap screw (BR-102252)
5 x M4 nylon insert lock nut (BR-102250)
